超特価セール開催！！ Amazon.com: TMP1105 AXK3047 + 2AS Thrust Needle Roller Bearings,Balls&Bushingsの詳細情報

Amazon.com: TMP1105 AXK3047 + 2AS Thrust Needle Roller。Amazon.com: TMP1105 AXK3047 + 2AS Thrust Needle Roller。Amazon.com: TMP1105 AXK3047 + 2AS Thrust Needle Roller。INA AXK3047 Roller Thrust Bearing + Two Washer AS3047 30x47。

Ball Bearings

Ball Bearings
Bearings
Construction and implementation

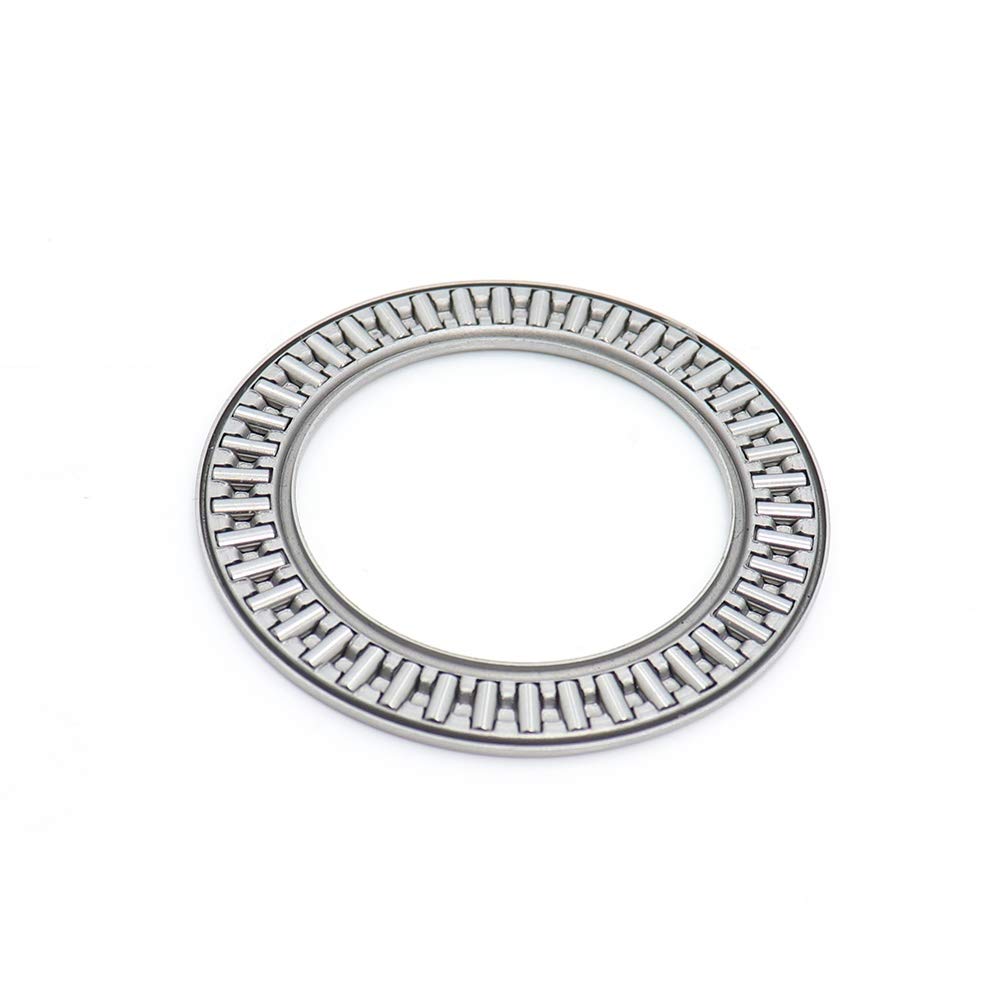

Thrust Needle Roller and Cage Assembly
Overview Thrust needle roller and cage assembly is a supplement for small diameter needle rollers positioned in spokes like configurations. Needle rollers are spaced equally by the cage, and the web section will separate the rollers and provide a guide to keep track on track. The objective of these assemblies is to transfer thrust loads between two relatively rotating objects while significantly reducing friction.
Thrust needle roller and cage assembly can also be integrated with the lip washers that act as the trajectory of the needle roller. Washers can be supplied separately or mechanically integrated into the thrust needle roller and cage assembly for easy handling. Catalog Range: 5mm ~ 240mm (0.1969" ~ 9.4488") Market: Auto and manual transmission, automotive accessories (compressor, steering gear, etc), agricultural and construction equipment. Function: One-way Foolproof Assembly Function, Anti-Rotation Lock Function, Enhanced Lubricating Flow
Advantage: High Speed Performance and Application Flexibility
Load Rating
Minimum Axial Load
Slips can occur especially when applicable axial loads are too light and the thrust needle roller and cage assembly run fast especially when lubrication is not sufficient. For satisfactory operation, you must apply a constant minimum load to the thrust needle roller and cage assembly. This can be calculated with the following formula: Fa min = C0a/2200 [KN]
Here, C0a = Static Rated Load [KN] Fa min = Minimum Axial Load [KN]
Lubrication
Oil recommended lubricant for thrust needle rollers and cage assemblies and must be used at high speeds or at medium speeds with relatively high loads.
Special Design
Thrust Needle Roller and Cage Assembly and Thru
